Our Products

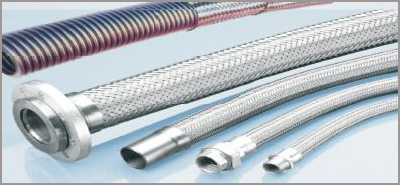

Hose & Fittings
Specification
| Standard | BS 6501 |
| Hose Material | SS304/304L/321/316L |
| Braid Material | SS304 |
| Temperature | - 270 to 800 C for SS321 & SS316 |
| - 270 to 800 C for SS304 & SS304L | |
| Application | Chemical Industry |
| Steam and Hot Water | |
| Cryogenic Service | |
| Food & Beverage | |
| Steel & Power Industry etc. |

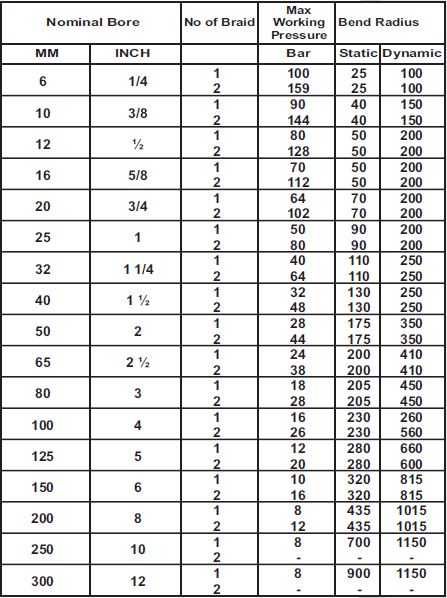

Pressure
| Test Pressure | - 1.5 Times of Working Pressure |
| Burst Pressure | - 4 Times of Working Pressure |
 Size : 1/4’’ NB to 2’’ NB |
 Size : 1/2’’ NB to 6’’ NB |

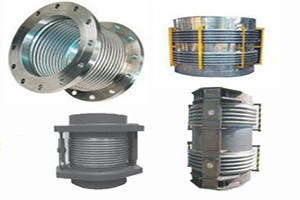

Metallic Expansion Bellows
| Standard | EJMA Std. |
| Types | Axial / Universal / Gimbal / Hinged |
| Size | 50 NB upto 5000 NB |
| MOC | 304/ 304L/ 321 / 316 / 316 / 310 & Incoloy 600, 625, 800 & 825 |

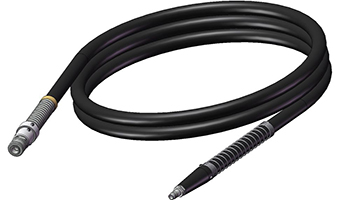

Rubber Hose
| Tube | Seamless Synthetic Rubber |
| Reinforcement | Spiral High Tensile Steel Wire |
| Cover | Synthetic Rubber, Weather, Oil & Abrasion resistant |
| Temperature | 40 C to + 120 C |
| Test Pressure | Working Pressure X 1.5 times |
| Brust Pressure | Working Pressure X 4 times |
Fabric Expansion Bellows
| Standard | FSA Std |
| Types | Customized |
| Size | Customized |
| MOC | Elastomer / Silicon Coated PTFE / PVC Coated |

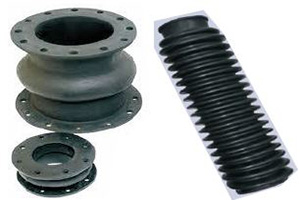

Rubber Expansion Bellows
| Standard | FSA Std |
| Types | Single & Multi Arch |
| Size | 50 NB to 600 NB |
| MOC | Natural, EPDM, Neoprene, Butyl, Nitrile etc.. |
Teflon Hose (PTFE)

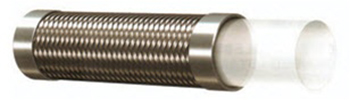

| PTFE Smooth Bore Hose | |
|---|---|
| Hose Material : | PTFE |
| Braid Material : | SS304 |
| size : | 1/4" NB to 1" NB |

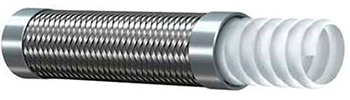

| PTFE Corrugated Bore Hose | |
| Hose Material : | PTFE |
| Braid Material : | SS304 |
| size : | 1/4" NB to 2" NB |

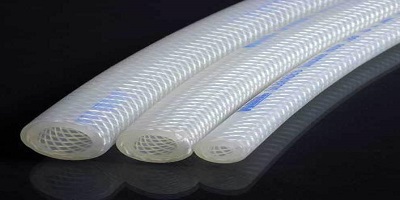

Silicon Hose
| Size | 1 inch, 1/2 inch, 2 inch, 3 inch, 3/4 inch |
| Temperature | 50-80 deg C |
| Length | 1m-6m |
| Material | silicon |
| Fluid Type | Water, Compressed Air |
